[Stoves] The 100-250 Combined Heat and Biochar Gasifier

[Paul Olivier]

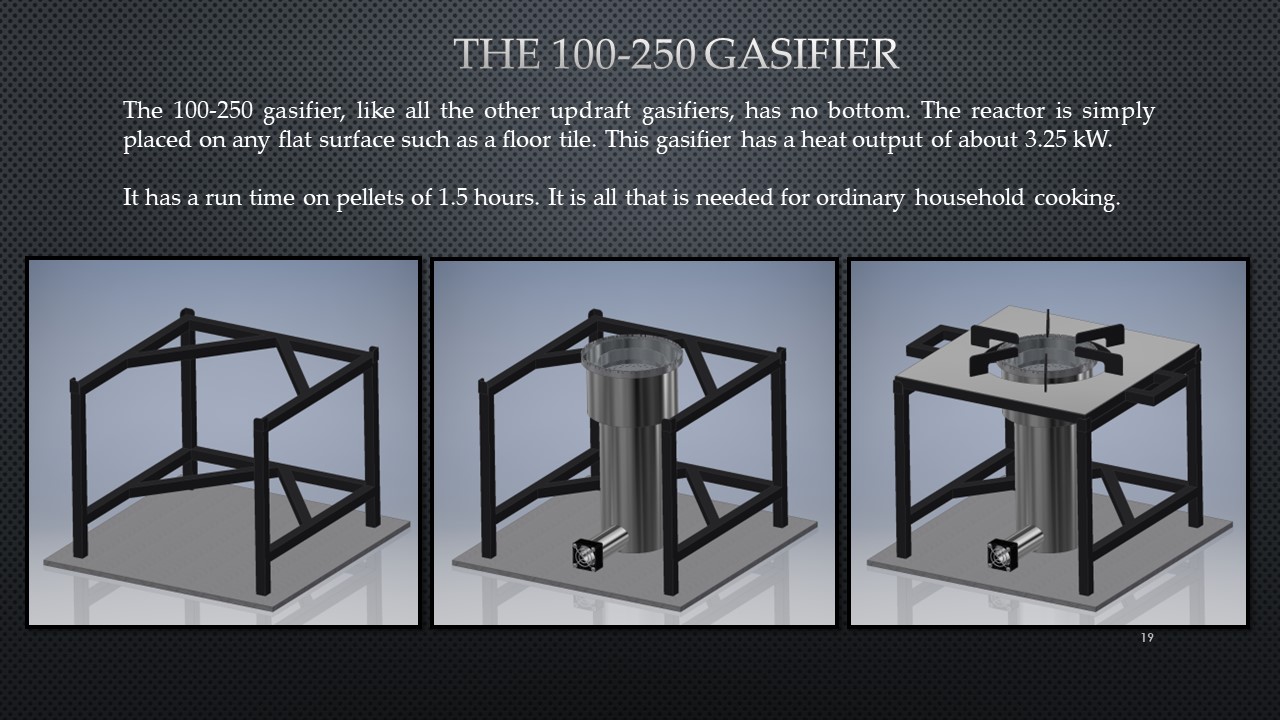

 This afternoon we ran the small 100-250 gasifier with the new tabletop
design.
Coffee wood pellets were used as fuel.
We used the powerful fan normally attached to the bigger gasifiers.
But this fan had been adjusted to give a much slower speed.
The fan remained in operation throughout the entire gasifier run and
consumed less than a third of a watt of electricity.
This small gasifier is all that is needed for ordinary household cooking.
It should sell for about half the price of the larger 150-500 gasifier.
But to have an extended run time up to an hour and a half, pellets or
briquettes are needed as fuel.
We should not use fossil fuels, wood or charcoal to cook a meal.
Please see the pictures and video below.
Thanks so much.
Paul

--
Paul A. Olivier PhD
104/43 Phu Dong Thien Vuong
Dalat
Vietnam

Louisiana telephone: 1-337-447-4124 (rings Vietnam)
Mobile: 090-694-1573 (in Vietnam)
Skype address: Xpolivier
http://epwt.vn/en/home/
