[Stoves] (no subject)

[Crispin Pemberton-Pigott]

Further to Ron’s comment about (thermal) efficiency:

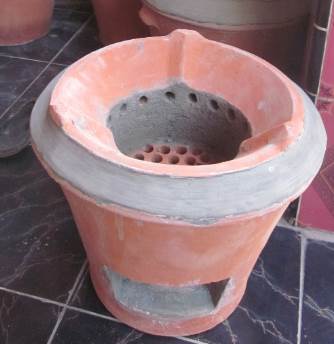

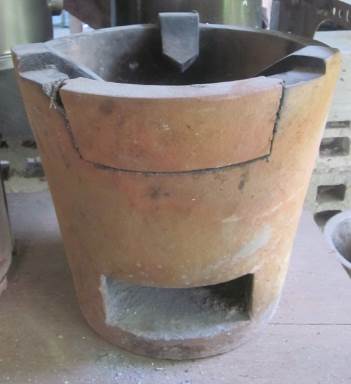

The typical charcoal stoves used in Yogyakarta have a fuel efficiency above 50%.
[cid:image001.jpg at 01D581C0.AE518660]

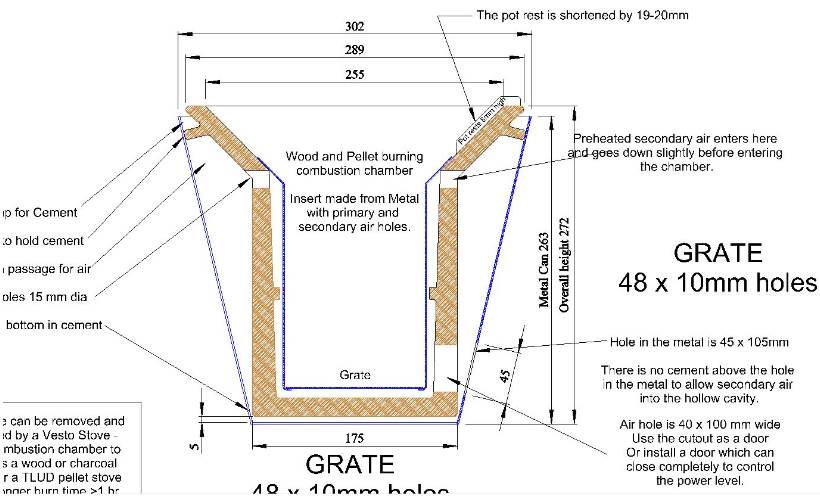

This was adapted to produce 75% less CO by adding preheated secondary air at a fuel efficiency loss of 1%.
[cid:image002.jpg at 01D581C0.AE518660]
[cid:image003.jpg at 01D581C0.AE518660]
Regards
Crispin
