[Stoves] Need institutional cooking stove for goat dairy in Oregon

[Gordon West]

This is exactly what The Trollworks has been designing and have begun manufacturing. Our technology is a continuous feed TLUD that can use any consistent chips or pelletized feedstock. We are presently working on a pilot project at Northern NM College to process locally sourced biomass, mostly from wildland/urban interface fuels reduction projects, and use it to heat classroom buildings while making biochar. We have made firetube heat exchangers for both air and water heating (separately of stacked). Our operations are still at the one-off stage and we have built a 70,000 Btu/hr unit and a 500,000 Btu system (for the NNMC pilot).

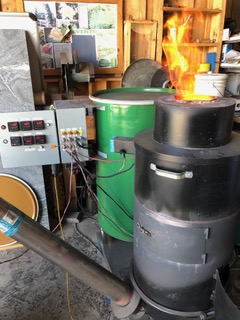

The smaller unit is pictured below.


We also have a small batch unit we call a “Charbecue” that takes a variety of heat-using accessories, including a kettle barbecue or a firetube heat exchanger for water or air. Kelpie has one of these units with a barbecue on it. They produce about 50,000 Btu/hr and will run for 1-3 hours on a batch, depending upon feedstock density.

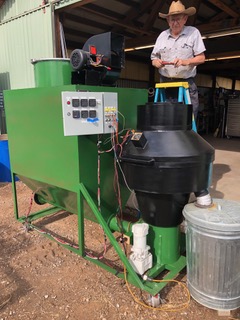

Here is the NNMC unit:


Gordon West
The Trollworks
503 N. “E” Street
Silver City, NM 88061
575-537-3689
https://www.troll.works
An entrepreneur sees problems as the seeds of opportunity.





> On Oct 25, 2019, at 2:43 AM, Andrew Heggie <aj.heggie at gmail.com> wrote:
>
> On Fri, 25 Oct 2019 at 02:44, Kelpie Wilson <kelpiew at gmail.com> wrote:
>>
>> Hi all,
>> I was doing a biochar workshop near Portland Oregon at a goat dairy last weekend and they asked about wood stoves for heating process water. They spend a fortune on propane now, and have gobs of wood they need to get rid of (overgrown christmas trees). I thought of InStove in Cottage Grove and went to look for information and their website has disappeared.
>>
> As it is biochar related is there any good reason it cannot be a large
> TLUD burner alongthe lines of those demonstrated by Alex English? The
> combustion could be directed through a firetube boiler and it would co
> produce char.
>
> Andrew
>
