I like this design Chris. A very simple afterburner could be constructed as
follows at no / little cost.

Find a small steel barrel ( 30 gallon ) and cut out both ends so you have a
hollow tube. For a larger kiln like that shown in the video, it might be
better to have 2 cut out barrels and tack weld them together to form a
longer hollow tube to contain the flare.

The holes where the stovepipes exit will need to be closed/eliminated.
Instead, place the barrel between where the stovepipes were so that the
edge of the barrel is perhaps 20-30 cm in from the edge of the box. Find
the center point of the barrel circumference with the barrel in position on
top of the box and put a mark there.

If you seal the bottom edge of the box-kiln with soil, you might be able to
get away with a single 10mm hole to allow the gases to escape. If not,
you'll need a larger hole, or a straight line of 10 mm holes, enough so
that the gases escape out the hole(s) rather than being pushed out from
underneath the box-kiln edge. (In a 200 liter barrel kiln, a single 8mm
hole is plenty. The gases come out under some pressure, but that helps to
mix air with the gas stream.)

Find 2 pieces of firebrick. You'll place them either side of the hole(s).
Make some legs for your afterburner, perhaps a tripod modeled after the
*Spacex* landing legs on the booster, so that there is about a 10 cm gap
between the bottom of the barrel and the top of the box-kiln. That gap will
allow air into your afterburner.

Set the firebrick and afterburner barrel aside. Load and start the batch on
fire. When the lid is closed, place the firebricks on either side of the
hole(s) leaving the same gap as the diameter of the hole(s), so the wood
gas contacts the firebrick on the way out. Place the *Spacex Afterburner*
centered over the holes and firebrick. Then with some kindling, start a
little fire on top of the kiln box next to the afterburner. Add some long
sticks so the ends are in the fire. Then gently push the fire to the edge
of the afterburner with one of the long sticks, and then a bit under. It
might take a bit of fiddling, but the gases will ignite, and the exhaust
will be clean. Take one of the sticks that has an ember on it, before your
fire under the afterburner goes out, and place it where the gas is exiting
the kiln, on top of the firebrick. The gas flow will keep the ember glowing
and the ember will keep the gas flame lit.

Once the afterburner has been burning for a while, perhaps 20-30 minutes or
so, the firebrick should keep the flame lit without an ember at the end of
a stick. A stainless steel wire mesh, or just stainless wire bunched up in
a tangle, suspended or jammed in the barrel over where the gas exits, will
also help to maintain the flame.

While the above approach fits with the simple DIY character of the kiln, a
more sophisticated afterburner is certainly possible.

[image: afterburner7.jpg]

See the stick? The ember at the end is helping to maintain the flare. In
the beginning of a batch, the wood gas will have some moisture content, so
the flare tends to go out without support of some kind.

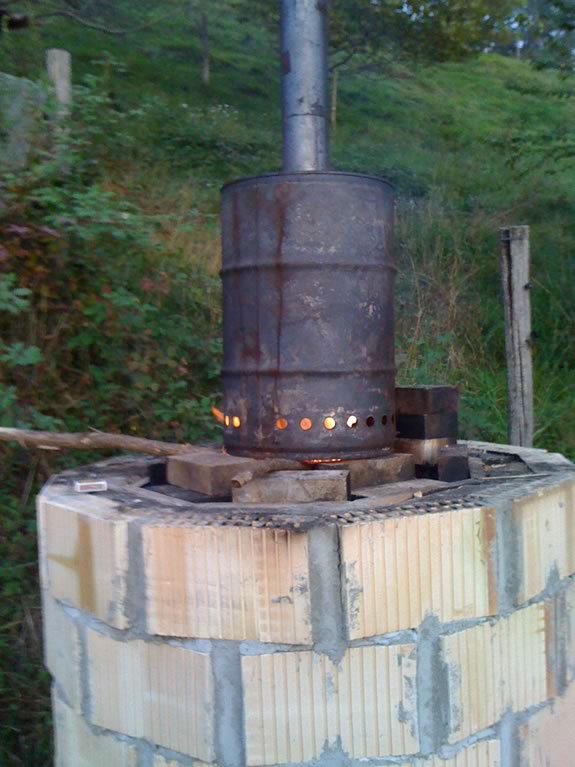

[image: afterburner8.jpg]

I used a stovepipe here, but it's not really necessary. It's more difficult
to weld, and it's going to fail where it's getting red hot. So I think
using 2 connected barrels is better.

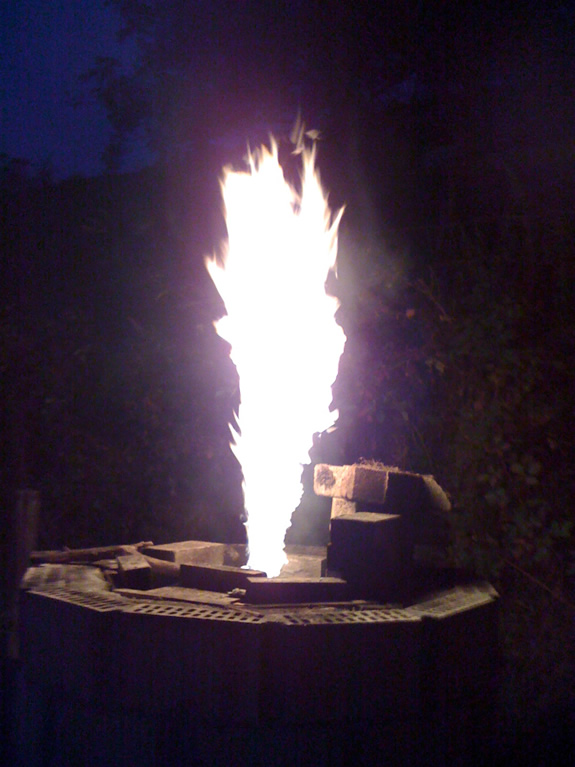

[image: afterburner9.jpg]

The flare here is being maintained by 2 firebricks positioned either side
of the gas exit hole. Once the firebrick gets hot and the moisture is out
of the wood gas, it worked well for me.

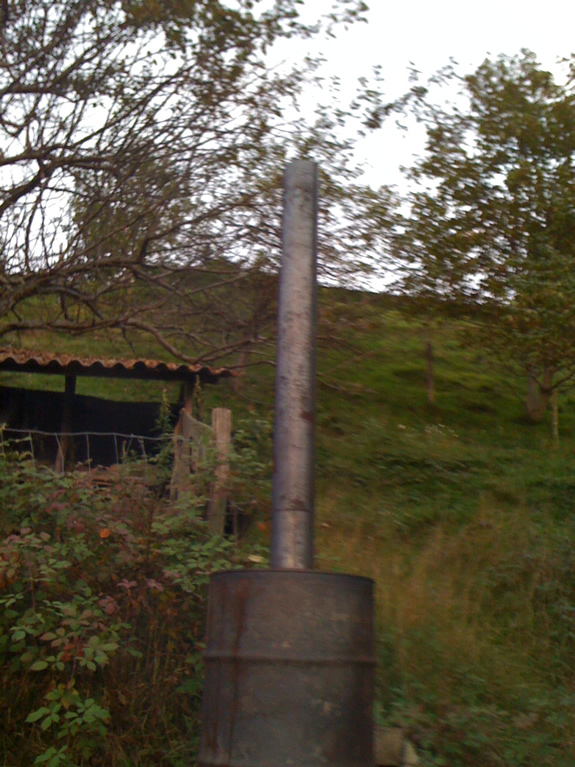

[image: afterburner6.jpg]

Clean stack.


Use heavy leather welding gloves when placing and maintaining the
afterburner. Avoid windy days.
