[Stoves] Fwd: the 500-800 gasifier

[Ronal Larson]

Lists;

 	Paul has said it would be OK to pass this on.    The largest TLUD of which I am aware.  This. is a good example of progress in the field.

Other comments:

	char yield in the 25-30% range depending on input material
	too large for restaurants. (but Paul has numerous designs)
	pot sizes of 600-900 mm
	always using a fan
	making his own tungsten disks

Ron


> Begin forwarded message:
>
> From: Paul Olivier <paul.olivier at esrla.com>
> Subject: the 500-800 gasifier
> Date: June 6, 2021 at 6:35:09 PM MDT
> To: Paul Olivier <paul.olivier at esrla.com>
>

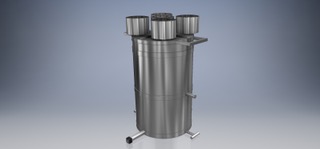

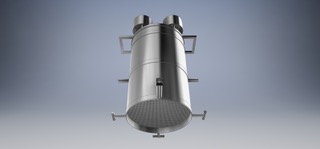

> This 500-800 gasifier can be fabricated for less than $750 US.
> 500 is reactor diameter, and 800 is reactor height.
> The heat output is over 80 kW.
> The run time with pellets is about 5 hours.

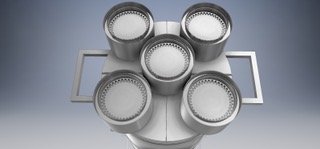

> The lid of this gasifier is equipped with five 150-500 gasifier burners.
> These burners are equipped with tungsten disks.
>
> --
> Paul A. Olivier PhD
> 104/43 Phu Dong Thien Vuong
> Dalat
> Vietnam
>
> Louisiana telephone: 1-337-447-4124 (rings Vietnam)
> Mobile: 090-694-1573 (in Vietnam)
> Skype address: Xpolivier
> http://epwt.vn/en/home/ <http://epwt.vn/en/home/>
