Julien;
Was there ever emissions testing on this device? It seems to have the
turbulence and mixing necessary for reasonably complete combustion.
Norm
On Fri, Mar 29, 2019 at 10:01 AM <stoves-request at lists.bioenergylists.org>
wrote:
> Send Stoves mailing list submissions to
> stoves at lists.bioenergylists.org
>
> To subscribe or unsubscribe via the World Wide Web, visit
>
> http://lists.bioenergylists.org/mailman/listinfo/stoves_lists.bioenergylists.org
>
> or, via email, send a message with subject or body 'help' to
> stoves-request at lists.bioenergylists.org
>
> You can reach the person managing the list at
> stoves-owner at lists.bioenergylists.org
>
> When replying, please edit your Subject line so it is more specific
> than "Re: Contents of Stoves digest..."
>
>
> Today's Topics:
>
> 1. Re: More about concentrators. (Julien Winter)
> 2. Re: More about concentrators. (Norman Baker)
> 3. Re: More about concentrators. (Julien Winter)
>
>
> ----------------------------------------------------------------------
>
> Message: 1
> Date: Thu, 28 Mar 2019 19:41:36 -0400
> From: Julien Winter <winter.julien at gmail.com>
> To: Norman Baker <ntbakerphd at gmail.com>
> Cc: "Anderson, Paul" <psanders at ilstu.edu>, Discussion of biomass
> cooking stoves <stoves at lists.bioenergylists.org>
> Subject: Re: [Stoves] More about concentrators.
> Message-ID:
> <
> CALv4xTxph8DGACC9HzkdKfsjpRBbwPPSmw79ccyqSPdpcXzWUA at mail.gmail.com>
> Content-Type: text/plain; charset="utf-8"
>
> Hi Norm;
>
> The nozzle discussed above would replace a concentrator ring in a ND-TLUD
> cookstove, or go at the bottom of an internal riser burner.
>

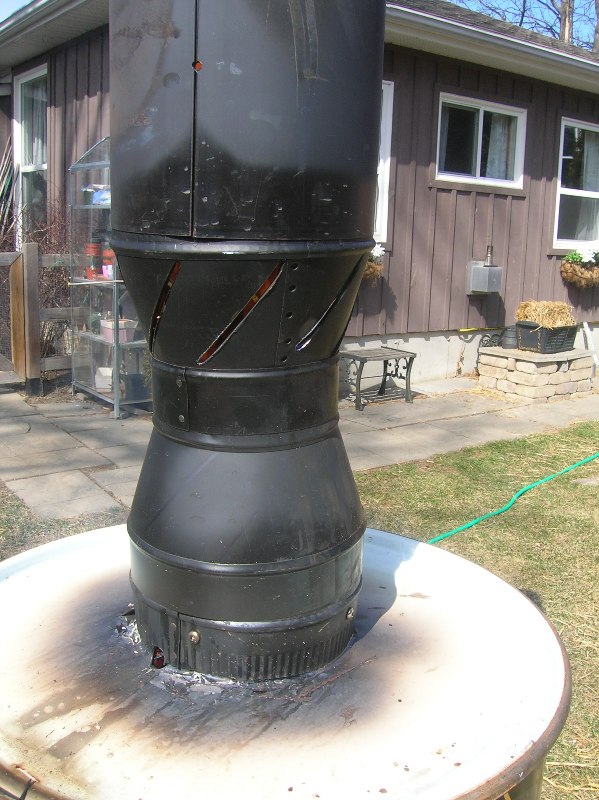

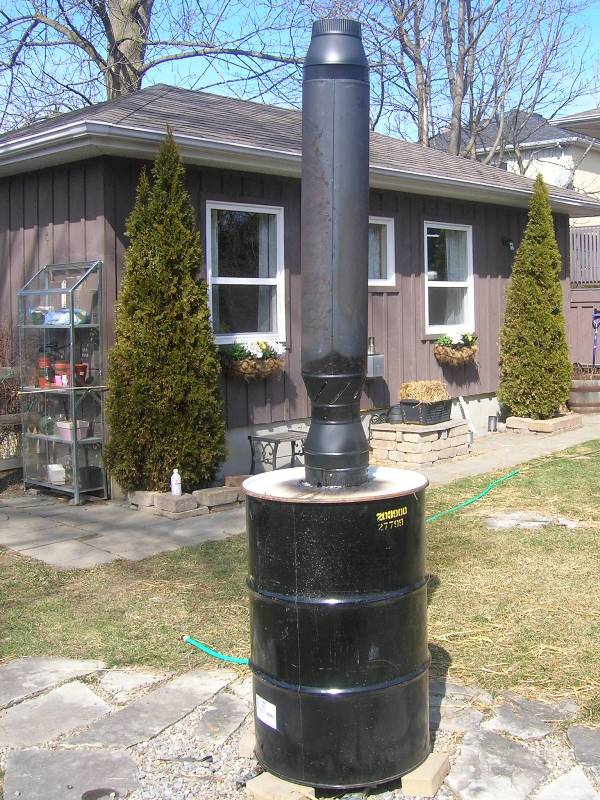

> For a 55 gallon TLUD, a nozzle can be adapted from black stove pipe
> expanding/reducing connectors. There is a picture of one (attached) that I
> built in 2013, following the advice of David Yarrow. It is a 35 gallon
> drum inside of a 55 gallon drum. David suggested cutting diagonal slits in
> the side of the expanding connector to create a tertiary air entry point.
> Later, I attached three cable guy-wires, with turn-buckles, to stabilize
> the stack. I don't have it any more. I gave it away to a friend.
>
> For these nozzles, I assume that there is a large degree of mixing of
> secondary air and pyrolytic gases before they enter the nozzle.
>
> Cheers,
> Julien.
>
> On Thu, Mar 28, 2019 at 12:53 PM Norman Baker <ntbakerphd at gmail.com>
> wrote:
>
> > Julien;
> >
> > I'm not sure I entirely understand where you put the nozzle? Where would
> > you suggest in my 55 gal. TLUD?
> >
> > Norm
> >
> > On Thu, Mar 28, 2019 at 6:58 AM Anderson, Paul <psanders at ilstu.edu>
> wrote:
> >
> >> Julien, (and to the Stoves Listserv, and for posting at my website
> >> www.drtlud.com/eposts )
> >>
> >>
> >>
> >> Interesting.
> >>
> >> Are the nozzles with slanted walls (like in a funnel) or with straight
> >> sides? What diameters at each end for what sized of TLUD gasifiers?
> >>
> >>
> >>
> >> Paul
> >>
> >>
> >>
> >> Doc / Dr TLUD / Paul S. Anderson, PhD
> >>
> >> Exec. Dir. of Juntos Energy Solutions NFP
> >>
> >> Email: psanders at ilstu.edu Skype: paultlud
> >>
> >> Phone: Office: 309-452-7072 Mobile: 309-531-4434
> >>
> >> Website: www.drtlud.com
> >>
> >>
> >>
> >> *From:* Julien Winter <winter.julien at gmail.com>
> >> *Sent:* Thursday, March 28, 2019 8:31 AM
> >> *To:* Norman Baker <ntbakerphd at gmail.com>
> >>
> >> Hi Norm;
> >>
> >>
> >>
> >> Instead of a concentrator ring, try a nozzle. A nozzle brings the
> >> burning gases together without the shape edges of a concentrator ring.
> >> The sharp edges could generate soot. A nozzle has smooth edges. TLUD
> >> nozzles are being manufactured, but they are being misused!! People
> are
> >> turning them upside down and using them to load mason jars with food.
> So,
> >> you can find TLUD nozzels on the shelves for food canning supplies in
> >> hardware stores.
> >>
> >>
> >>
> >> The reason why I got into the stove burner design business about five
> >> years ago was because when I used concentrator rings, I got deposits on
> the
> >> bottom of pots.
> >>
> >>
> >>
> >> Cheers,
> >>
> >> Julien.
> >>
> >>
> >>
> >>
> >>
> >>
> >>
> >> On Thu, Mar 28, 2019 at 1:47 AM Norman Baker <ntbakerphd at gmail.com>
> >> wrote:
> >>
> >> Paul;
> >>
> >> I assume you mean the diameter of the stack or combustor? In prior tests
> >> with concentrator rings, a whole that has a diameter of 70% of the stack
> >> seem to be adequate. Lately, I have been going to about an 80%
> >> diameter. In one publication I read the stack diameter should be at
> least
> >> 60% of the feedstock barrel diameter. Otherwise the time needed for
> gases
> >> to exit the combustor became too fast and hence too short for complete
> >> combustion. Is this your experience? And how about the rest of you
> chiming
> >> in on this.
> >>
> >>
> >>
> >> Norm
> >>
> >>
> >>
> >> On Wed, Mar 27, 2019 at 8:05 PM Anderson, Paul <psanders at ilstu.edu>
> >> wrote:
> >>
> >> Norm,
> >>
> >>
> >>
> >> In general, the diameter of the hole is about half of the diameter.
> But
> >> there might not be any visible (noticeable) impact if reduced or
> enlarge 10
> >> to 20% of the size of the hole. Trial and error are your best bets to
> get
> >> this refined.
> >>
> >>
> >>
> >> I look forward to hearing of your results.
> >>
> >>
> >>
> >> Paul
> >>
> >>
> >>
> >>
> >>
> >
>
> --
> Julien Winter
> Cobourg, ON, CANADA
