[Stoves] Briquette stove in cob

[Rok Oblak]

Hej Crispin and Richard, great to hear your reactions;

I was working with hi density briquettes in Kampala (Nguvu briquettes &
coffee), but no hole as well. It also seemed the density was kind of not
giving enough air, tho we got it going in the stove. I remember the machine
was a huge steam thing :)
https://briquettestoves.com/2009/07/17/nguvu-stove/

Richard, we used the cube mold as it was ready to go; i imagine the round
would not be so easy to make and disassemble, maybe a metal barrow cut into
3 pieces. We liked the modern cube format as well :)

I didn't see Kevin’s square hole in the ground kinda-TLUD, can you show me
a photo/link to it?

I will send you a photo of the big cob stove when its ready, it will take a
month to dry probably! I like the fact that with cob you can make a whole
kitchen bord/desk, with shelves and all, as its so nice to have a surface
for pots right next to your fire

Cheers!
Rok





On Mon, Jun 27, 2022 at 11:45 PM Richard Stanley <rstanley at mind.net> wrote:

> Rok,
> Good to hear from you! Thanks as ever for your work on finding practical
> ways to extend the life of ceramic liners . Its an issue which has promised
> alot of folks as much -in terms of thermal insulation and resulting thermal
> efficiency as it frustrates-in terms of your mentioned issue of low
> structural durability.
> Do you find it easier to use a cubic shape for the clay sand exterior? I
> wonder because , it seems that a simple cylindrical form would be easier to
> shape and use less material and still be  as effective as a thermal ‘
> cushion given the cylindrical shape of the rocket stove itself .
>
> Richard Stanley
>
>
> Sent from my iPhone
>
> On Jun 27, 2022, at 7:46 AM, Rok Oblak <rok.stoves at gmail.com> wrote:
>
>

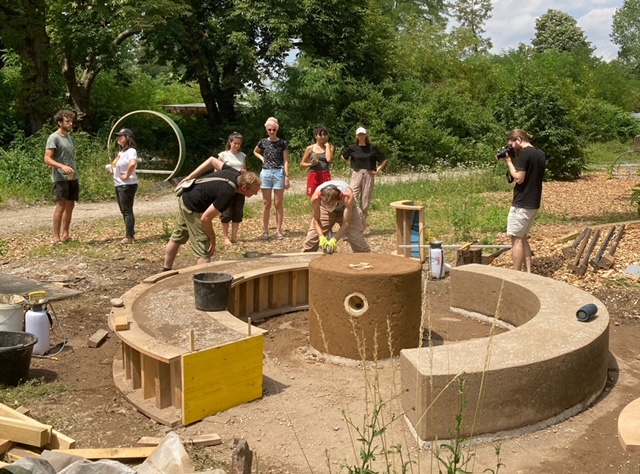

> Dear stovers,
>
> it's been a long time since I've written in the list, but we recently
> organized a Building with Earth workshop and one detail in the cob table
> was an integrated cooking stove - a ceramic liner, using biomass
> briquettes, same type as from Richard Stanley.
>
> It showed up as a great update to the holey Roket stove
> https://briquettestoves.com/ as durability is a big issue as ceramic
> liners tend to crack and break pretty easily due to temperature shocks, but
> the cob here is making it last for a long time.
>
> I have mixed local found clay and a lot of fine sawdust in the liner and
> it doesn't make any smoke, only when you push in a new briquette, there is
> black fumes for a few seconds, until a new one ignites.
>
> If you happen to know any projects this principle would be good to
> integrate, even for other types of wood, I would be happy to share my
> experiences and possibly collaborate on redesigning existing stoves with
> this alternative solution.
>
> Happy and healthy cooking!
> Rok
>
> --
> *Rok Oblak, MAA Design*
>
> rok.stoves at gmail.com
> briquettestoves.com <http://www.holeyroket.com/>
>
> Gregorciceva ulica 5
> 4224 Gorenja vas
> Slovenia
> [image: IMG_1230.jpg][image: IMG_1191.jpg][image: IMG_1161.jpg]
> _______________________________________________
> Stoves mailing list
>
> to Send a Message to the list, use the email address
> stoves at lists.bioenergylists.org
>
> to UNSUBSCRIBE or Change your List Settings use the web page
>
> http://lists.bioenergylists.org/mailman/listinfo/stoves_lists.bioenergylists.org
>
> for more Biomass Cooking Stoves,  News and Information see our web site:
> http://stoves.bioenergylists.org/
>
> _______________________________________________
> Stoves mailing list
>
> to Send a Message to the list, use the email address
> stoves at lists.bioenergylists.org
>
> to UNSUBSCRIBE or Change your List Settings use the web page
>
> http://lists.bioenergylists.org/mailman/listinfo/stoves_lists.bioenergylists.org
>
> for more Biomass Cooking Stoves,  News and Information see our web site:
> http://stoves.bioenergylists.org/
>
>

--
*Rok Oblak, MAA Design*

rok.stoves at gmail.com
briquettestoves.com <http://www.holeyroket.com/>

Gregorciceva ulica 5
4224 Gorenja vas
Slovenia
